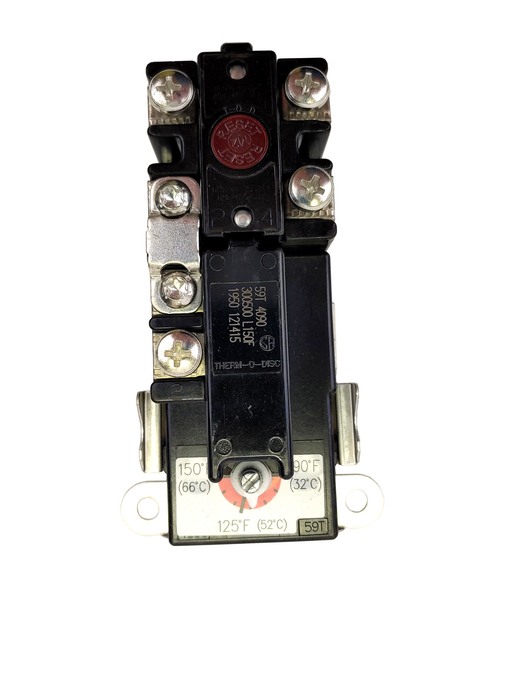

Therm Coil 59T-66T-3M2 Single-Element Electric Hot Water Heater 90°-150°F Upper Thermostat With 170°F High Limit Combo

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

Therm Coil Drawing No. 337T-4011-003      Therm Coil Model No. 59T-66T-3M2

Description

  • For Single-Element Connection For The Upper Element In Electric Hot Water Heaters.
  • Adjustable 90°-150°F Single-Pole Single-Throw (SPST) Thermostat with Hi-Limit (High Limit) That Opens at 170°±5°F (Manual Reset Button)
  • Fits most residential water heaters including those with Apcom, National Brand, Reliance, Robertshaw, and Therm-O-Disc thermostats, including Bradford White Water Heaters.
  • The hi-limit (high limit) control/safety override feature automatically trips at 170 degrees Fahrenheit to improve safety (±5°).

Equivalent To Part Numbers:

Chromalox / Emerson / EHP Backer: 59T/66T3M2, 59T66T3M2, 59T/66T 3M2, 413913, 413841, 300-053852-003, 053852-003, 053852-3

Therm-O-Disc: 300202 (300500 & 301300 Combined)

    59T-4090 Thermostat Electrical Rating Information

    • Temperature Range: 90° to 150°F
    • Temperature Differential: 5° to 15°
    • Open Temperature: 120°F @ 6 O'clock Pointer Position
    Maximum Rating:
    • 40 Amps @ 277 VAC
    • 25 Amps @ 480 VAC
    • 7,500 Watts @ 250VAC
    • 6,000 Watts @ 480VAC
    • 125 Volt Amps For Pilot Duty @ 120 - 480 VAC
    • U/L and CSA Agency Approved

    66T-4490 High Limit Electrical Rating Information

    • Open Temperature: 170°F ±5°
    • Temperature Differential: 5° to 15°
    • Manual Reset Button
    Maximum Rating:
    • 40 Amps @ 277 VAC
    • 25 Amps @ 480 VAC
    • 7,500 Watts @ 250VAC
    • 6,000 Watts @ 480VAC
    • 125 Volt Amps For Pilot Duty @ 120 - 480 VAC
    • U/L and CSA Agency Approved
