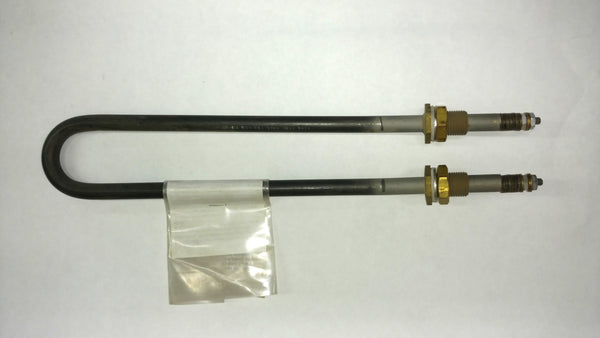

Therm Coil Drawing No. 383K-1112-002 Therm Coil Model No.: CC-811-183
- Application: Used In Cres Cor Bread Proofers and others.
- Equivalent Replacement For Part No.: Cres Cor 0811 183, 0811-183, 811-183, and others.
- High-Performance .315" DIA. Incoloy Sheath Elements For Long Life
- Rated 500W @ 120V
- Element Sheath Material: Incoloy
- Quantity Of Elements: 1
- Voltage: 120 V
- Wattage: 500 W
- Length Inside Vessel: 10-1/4" ±1/8"
- Terminal Connections: #10-32 Stud Terminals (Hardware Included)
- Bulkhead Fittings: (2x) 5/8"-18 (Hardware Included)
- Overall Dimensions Excluding Terminal Connections (LxW): 11-7/8" x 2-1/8, With 1-11/16" Center-to-Center Terminals (flexible)
Disclaimers: Cres Cor is a registered trademark of Crescent Metal Products Inc..
Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts. Therm Coil MFG. Co. parts are compatible with many brand name bread proofers.
