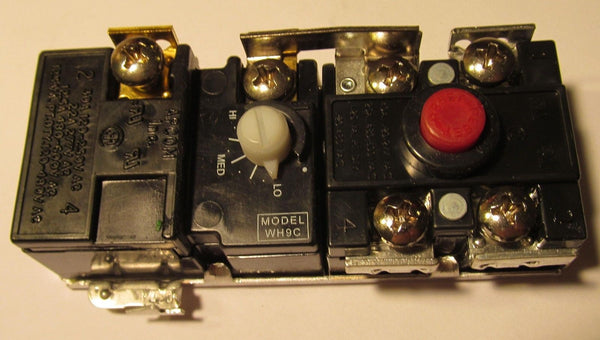

Therm Coil WH9-WL6-C Lower Commercial Water Heater Thermostat With High Limit & Cover, 135°-180°F; Bradford White Compatible

Discounted price $ 21.88 List price $ 27.35

Therm Coil Drawing No. 337T-4004-002      Therm Coil Model No. WH9-WL6-C

Apcom Model No. WH9C-WL6200


  • Replaces Old Apcom Models: WH9-WL6, WH7-WL4, WH5-WL(x)
  • For Lower Single-Element In Commercial Water Heaters
  • Adjustable 135°-180°F Single Pole Single Throw Thermostat with Hi-Limit That Opens at 200°±5°F
  • Fits most commercial water heaters including those with Apcom, National Brand, Reliance, Robertshaw, and Therm-O-Disc thermostats, including Bradford White Water Heaters.
  • Engineered to be more sensitive and accurate than conventional thermostats, APCOM water heater thermostats are the most popular in the industry. Their patented design encapsulates the bimetal thermostat sensor, protecting it from the temperature changes of other components. This feature means you get a thermostat with enhanced temperature sensitivity for accurate, reliable system control.
  • APCOM thermostats are remarkably easy to install. The wiring terminals feature "tear drop" holes that enter into the bind head screw terminal, making it easier to lock the wire into place. This speeds the assembly process, and helps ensure that connections are made properly. In addition, our limit control/safety override feature automatically trips at 180 degrees to improve safety (±5°).
  • Includes Cover
  • Made In the U.S.A.

WH9C Thermostat Electrical Rating Information

  • Calibrated to 140°±5°F at "LO" indicator setting
  • Temperature Range: 135° to 180°F
  • Temperature Differential: 7° to 17°F below calibration temperature.
  • 30 Amps @ 120 - 250 VAC
  • 22 Amps @ 277 VAC
  • 12.5 Amps @ 480 - 600 VAC
  • 125 Volt Amps For Pilot Duty @ 120 - 480 VAC
  • U/L and CSA Agency Approved

WL6200 High Limit Electrical Rating Information

  • Open Temperature 200°±5°F
  • 40 Amps @ 120 - 277 VAC
  • 25 Amps @ 480 - 600 VAC
  • 125 Volt Amps For Pilot Duty @ 120 - 480 VAC
  • U/L and CSA Agency Approved
