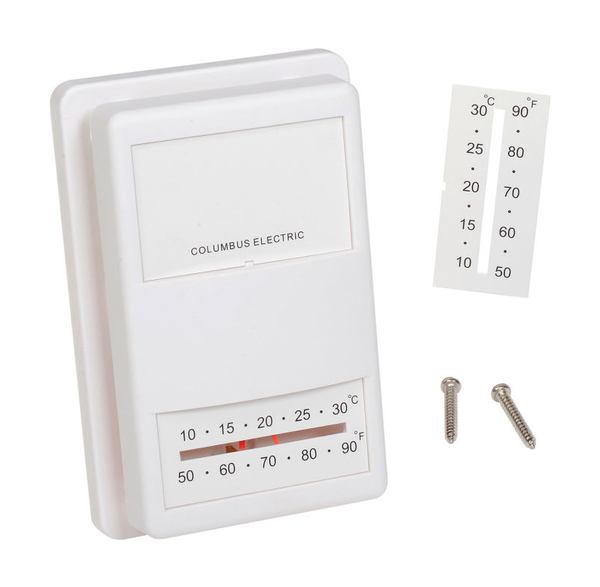

Therm Coil Drawing No.: 337T-2061-001

Therm Coil Model No: UT1001

TPI Model No.: UT1001

Features

• 50°-90° Heat-Only Thermostat For 24VAC and Millivolt Systems
• Fahrenheit and Celsius Temperature Scales

• Allows For Vertical or Horizontal Wall-Mounting
• Leveling Is Not Required
• Long-Life Sealed Contacts
• Does Not Contain Mercury
• Heat Anticipator

Specifications

• Range: 50° - 90°F Heat Only

• Temperature Scale: Celsius or Fahrenheit
• Rating: 24VAC or Millivolt Systems
• Switch: None

• Terminals: R & W

• Anticipator: Yes
• Differential: ±2-3°F

• Control: Analog

• Dimensions: 6" H x 4" W x 2" D
• Application: Indoor Residential and Commercial
• Approvals: U.L. Approved;  Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive

Equivalent to Part Numbers:

TPI: UT1001

Columbus Electric: UT1001

Markel: UT1001





Disclaimers: TPI, Columbus Electric, and Markel are registered trademarks of TPI Corporation.Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
