Therm Coil Drawing No.: 337T-2061-005

Therm Coil Model No: UT8001

TPI Model No.: UT8001

Features

• 50°-90° Heat & Cool Universal Thermostat For 24VAC
• With Fan and System Switches
• Fan Option For Gas, Oil, or Electric Heat
• Fahrenheit and Celsius Temperature Scales

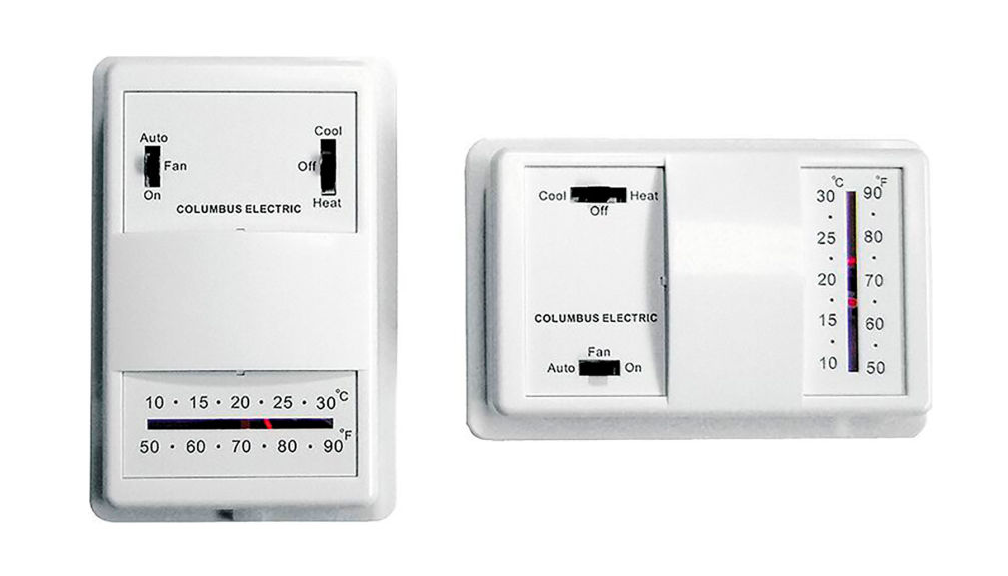

• Allows For Vertical or Horizontal Wall-Mounting
• Leveling Is Not Required
• Long-Life Sealed Contacts
• Does Not Contain Mercury
• Heat & Cool Anticipator

Specifications

• Range: 50° - 90°F Heat & Cool

• Temperature Scale: Celsius or Fahrenheit
• Rating: 24VAC, 1.0 Amp MAX.
• Switches: Heat/Off/Cool Fan/Auto

• Terminals: RC, RH, W, Y, & G

• Anticipator: Yes
• Differential: ±2-3°F

• Control: Analog

• Dimensions: 6" H x 4" W x 2" D
• Application: Indoor Residential and Commercial
• Approvals: U.L. Approved;  Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive

Equivalent to Part Numbers:

TPI: UT8001

Columbus Electric: UT8001

Markel: UT8001





Disclaimers: TPI, Columbus Electric, and Markel are registered trademarks of TPI Corporation.Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
