Therm Coil Drawing No.: 337T-2061-006

Therm Coil Model No: UT9001

TPI Model No.: UT9001

Features

• 50°-90° Heat-Only Thermostat For Millivolt Systems
• Fahrenheit and Celsius Temperature Scales

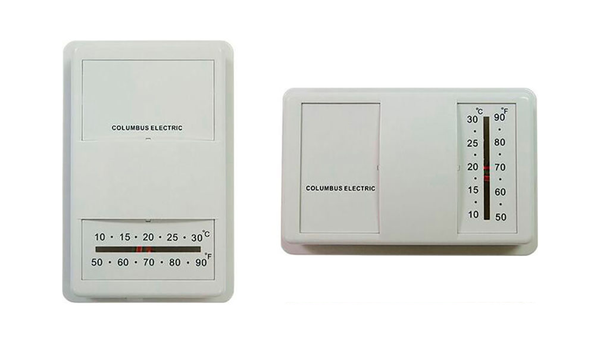

• Allows For Vertical or Horizontal Wall-Mounting
• Leveling Is Not Required
• Long-Life Sealed Contacts
• Does Not Contain Mercury

Specifications

• Range: 50° - 90°F Heat Only

• Temperature Scale: Celsius or Fahrenheit
• Rating: Millivolt Systems
• Switches: None

• Terminals: R & W

• Anticipator: No
• Differential: ±2-3°F

• Control: Analog

• Dimensions: 6" H x 4" W x 2" D
• Application: Indoor Residential and Commercial
• Approvals: U.L. Approved;  Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive

Equivalent to Part Numbers:

TPI: UT9001

Columbus Electric: UT9001

Markel: UT9001





Disclaimers: TPI, Columbus Electric, and Markel are registered trademarks of TPI Corporation.Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
