UCH-1511: 1,500 W @ 120 VAC, Single-phase, Copper Urn Heater (No Cutout)

List price $ 0.00

Therm Coil Model No: UCH-1511       Therm Coil Drawing No.: 379C-3010-002

Product Description

  • Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
  • NOTE: 2" Minimum Liquid Depth
  • 1,500W (1.5kW) @ 120VAC, Single-Phase (12.5A)
  • Copper Sheath Elements
  • Bottom Mounted
  • Round Brass Flange
  • General Purpose Enclosure
  • Without Integral Thermal Cutout

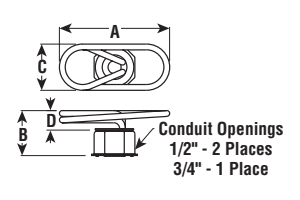

  • Dimensions (See Diagram): 6-3/4" (A) x 4-9/16" (B) x 4-1/4" (C) x 2-5/16" (D)

  • Model UCH-1511 Replaces: Therm Coil model series UC-1511 and model series UA-1511 (this includes models without thermal cutout).
  • Equivalent To Part Numbers: Chromalox 272330, TTUH-15A (120V)

  NOTE - Product images may be of product in same series and not exact item - see Product Information above for exact specifications.



“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”
