UCH-3041: 3,000 W @ 240 VAC, Single-phase, Copper Urn Heater (No Cutout)

Save 30% Save 30%
Original price $ 565.50
Original price $ 565.50 - Original price $ 565.50
Original price $ 565.50
Current price $ 395.85
$ 395.85 - $ 395.85
Current price $ 395.85
Availability:
2 in stock, ready to be shipped

Therm Coil Model No: UCH-3041       Therm Coil Drawing No.: 379C-3010-013

Product Description

  • Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
  • NOTE: 2" Minimum Liquid Depth
  • 3,000W (3kW) @ 240VAC, Single-Phase (12.5A)
  • Copper Sheath Elements
  • Bottom Mounted
  • Round Brass Flange
  • General Purpose Enclosure
  • Without Integral Thermal Cutout
  • 2-7/16” Diameter Opening In The Bottom Of The Tank Is Required To Insert The Urn Heater.

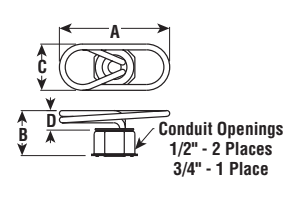

  • Dimensions (See Diagram): 6-3/4" (A) x 4-9/16" (B) x 4-1/4" (C) x 2-5/16" (D)

UCH-3041 Replaces Part Numbers:

  • Seco 15780
  • Seco XP144
  • Chromalox 272444
  • Chromalox TTUH-30A (240V)
  • Therm Coil UC-3041 and UA-3041



  NOTE - Product images may be of product in same series with identical form, but different element dimensions - see Dimensions information above.



“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”



Disclaimers: Seco and Seco Select are registered trademark of MD Holdings, LLC. Chromalox is a registered trademark of CHROMALOX, INC.. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name steam tables, coffee urns, food warmers, humidifiers, and kettles.
