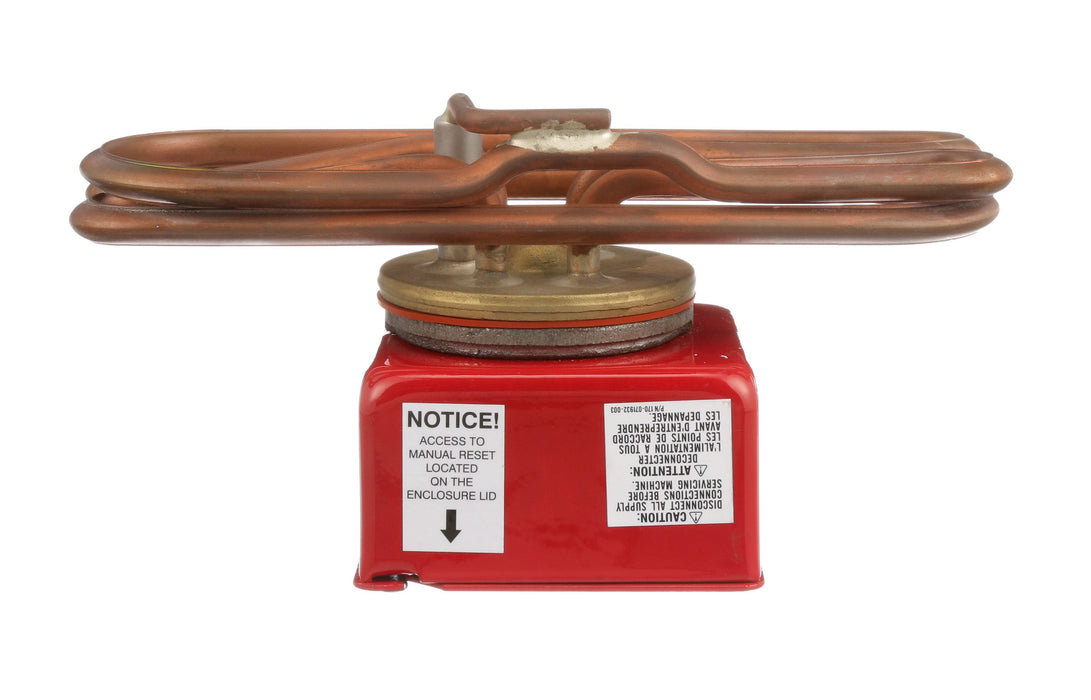

Therm Coil Model No: UCH-4021-C Therm Coil Drawing No.: 379C-3000-011
- Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
- NOTE: 2-1/2" Minimum Liquid Depth
- 4,000 W (4kW) @ 208VAC, 1-Phase (19.3A)
- Copper Sheath Elements
- Integrated Low-Liquid Thermal Cutout (TCO)
- Bottom Mounted
- Round Brass Flange
- General Purpose Enclosure
- 2-7/16” Diameter Opening In The Bottom Of The Tank Is Required To Insert The Urn Heater.

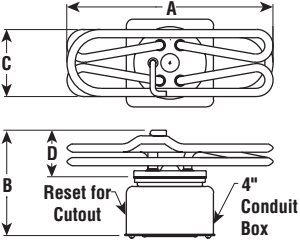

- Dimensions (See Diagram): 9-1/2" (A) x 4-13/16" (B) x 3-1/16" (C) x 2-1/8" (D)
- Model UCH-4021-C Replaces: Therm Coil model series UC-4021 and model series UA-4021 (this includes models with and without thermal cutout).
Equivalent To Part Numbers:
- Eagle Group 305436
- Chromalox 256129
- Chromalox TTUH-CO-40 (208V).
Compatible With Eagle Group Electric Water Bath Steam Table Models:
NOTE - Product images may be of product in same series with identical form, but different element dimensions - see Dimensions information above.
“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”
Disclaimers: Eagle Group is a registered trademark of Eagle Group USA, Inc.. Chromalox is a registered trademark of CHROMALOX, INC..
Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts. Therm Coil MFG. Co. parts are compatible with many brand name steam tables, coffee urns, food warmers, humidifiers, and kettles.
