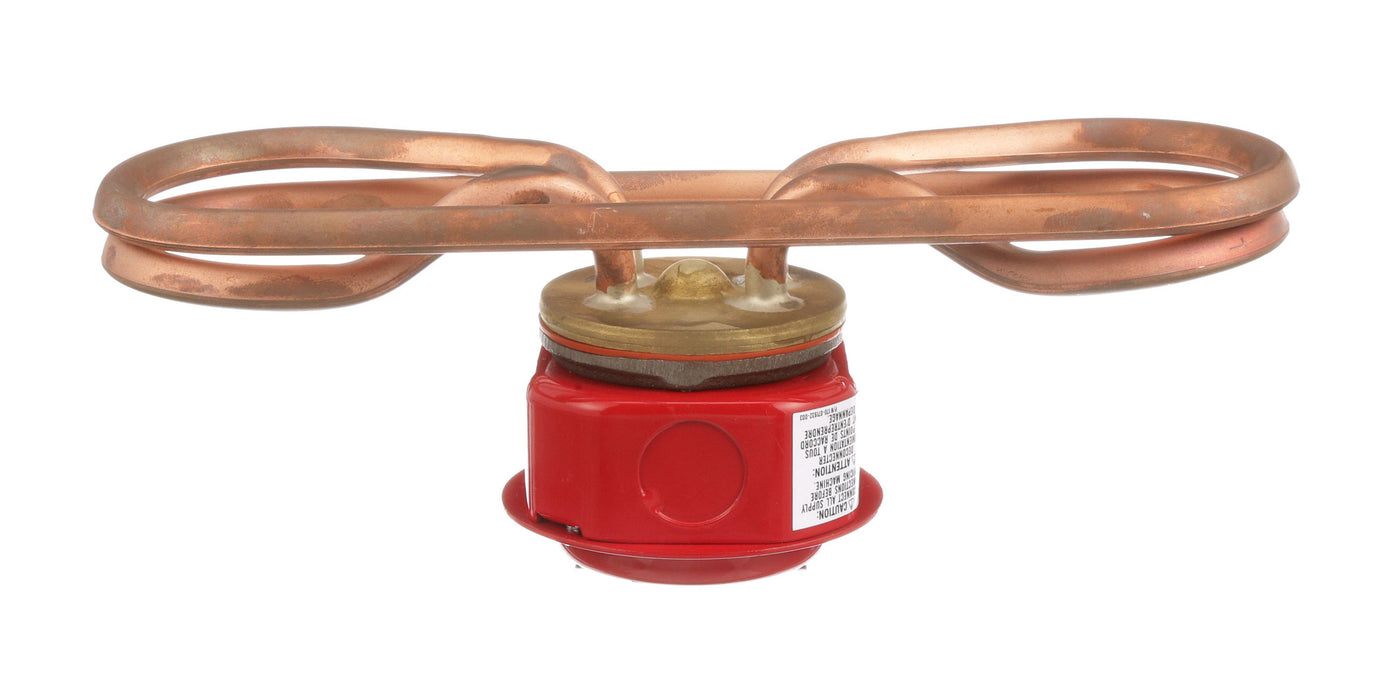

Therm Coil Model No: UCH-5041 Therm Coil Drawing No.: 379C-3010-018
- Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
- NOTE: 2" Minimum Liquid Depth
- 5,000W (5kW) @ 240VAC, Single-Phase (20.9A)
- Copper Sheath Elements
- Round Brass Flange
- General Purpose Enclosure
- Without Integral Thermal Cutout
- 2-7/16” Diameter Opening In The Bottom Of The Tank Is Required To Insert The Urn Heater.

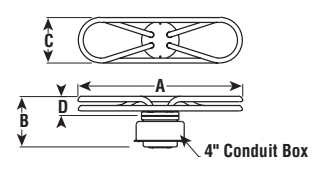

- Dimensions (See Diagram): 12-3/4" (A) x 4-9/16" (B) x 4" (C) x 1-11/16" (D)
UCH-5041 Replaces Part Numbers:
- Seco 158050
- Seco XP146
- Chromalox 192591
- Chromalox TTUH-50 (240V)
- Therm Coil UC-5041 and UA-5041
NOTE - Product images may be of product in same series with identical form, but different element dimensions - see Dimensions information above.
“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”
Disclaimers: Seco and Seco Select are registered trademark of MD Holdings, LLC. Chromalox is a registered trademark of CHROMALOX, INC.. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts. Therm Coil MFG. Co. parts are compatible with many brand name steam tables, coffee urns, food warmers, humidifiers, and kettles.
