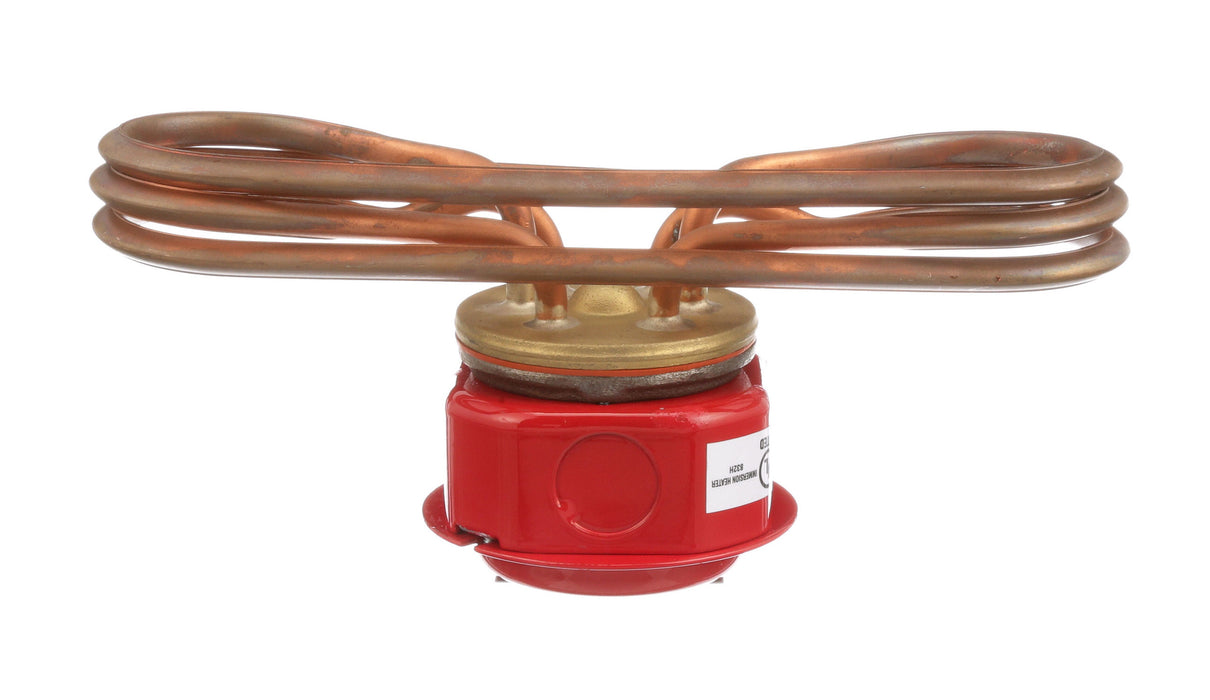

UCH-5043: 5,000 W @ 240 VAC, Three-phase, Copper Urn Heater (No Cutout)

Call for Availability
Original price $ 769.08
Original price $ 769.08 - Original price $ 769.08
Original price $ 769.08
Current price $ 653.72
$ 653.72 - $ 653.72
Current price $ 653.72
Availability:
Call for Availability

Therm Coil Model No: UCH-5043       Therm Coil Drawing No.: 379C-3011-007

Product Description

  • Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
  • NOTE: 2" Minimum Liquid Depth
  • 5,000W (5kW) @ 240VAC, Three-Phase (12.1A)
  • Copper Sheath Elements
  • Bottom Mounted
  • Round Brass Flange
  • General Purpose Enclosure
  • Without Integral Thermal Cutout
  • Dimensions (See Diagram): 11" (A) x 4-5/8" (B) x 3-1/8" (C) x 1-15/16" (D)

UCH-5043 Replaces Part Numbers:

  • Seco 0158700
  • Seco XP151
  • Chromalox 255994
  • Chromalox TTUH-503 (240V)
  • Therm Coil UC-5043 and UA-5043



  NOTE - Product images may be of product in same series with identical form, but different element dimensions - see Dimensions information above.



“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”



Disclaimers: Seco and Seco Select are registered trademark of MD Holdings, LLC. Chromalox is a registered trademark of CHROMALOX, INC.. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name steam tables, coffee urns, food warmers, humidifiers, and kettles.
