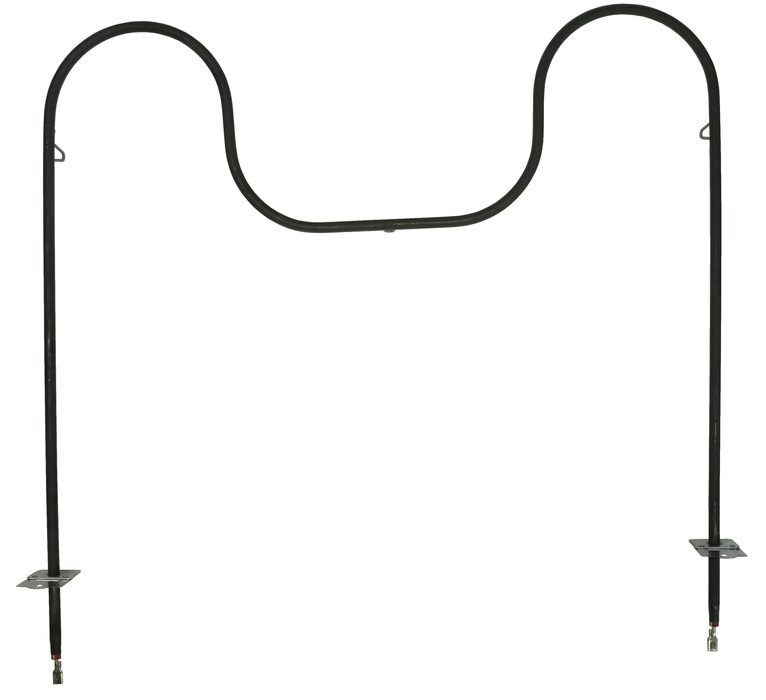

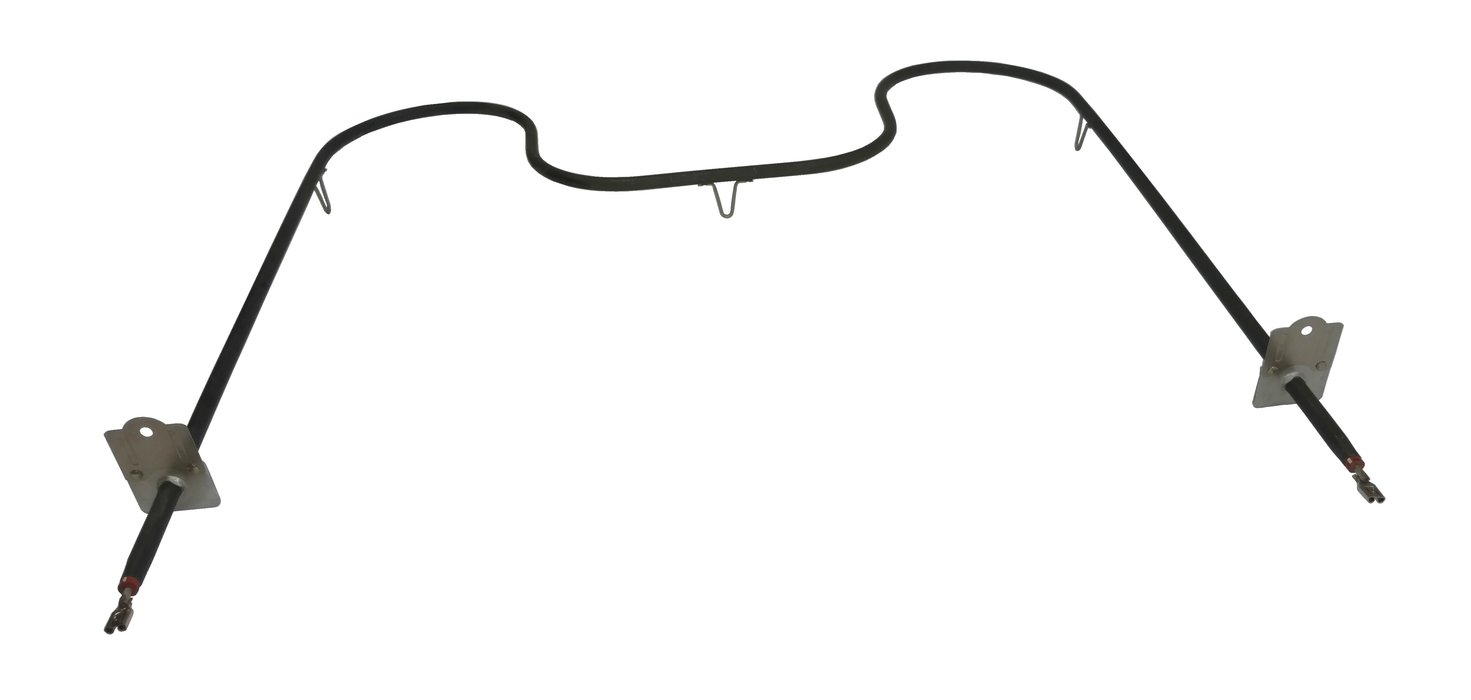

Model TC-74003020: Whirlpool-Maytag-Jenn-Air WP74003020 Equivalent Range/Oven Bake Replacement Element, 2,100/2,800W @ 208/240V

Save 15% Save 15%
Original price $ 96.00
Original price $ 96.00 - Original price $ 96.00
Original price $ 96.00
Current price $ 81.60
$ 81.60 - $ 81.60
Current price $ 81.60
Availability:
4 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3043-001      Therm Coil Model No.: TC-74003020

Description

  • Replacement For Part Numbers:

Whirlpool / Maytag / Maycor / Jenn-Air:  WP74003020, 74003020, 04000071, 7406P078-60, 7406P093-60, 8189693, 880007, 74003020-P156, Y04000071

Other: AP6010825, 1500

  • 2100 / 2800 W @ 208 / 240 V Rating

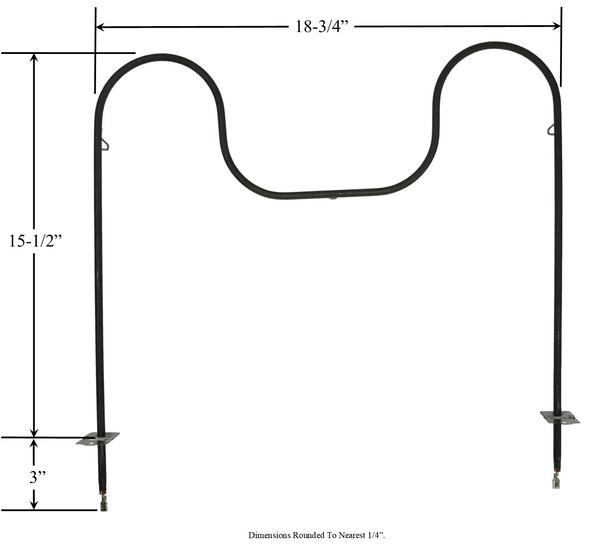

  • Overall Size: 18-3/4" Width x 15-1/2" Length To Mounting Brackets x 18-1/2" Center-to-Center Terminal Width x 3" Insert (Mounting Bracket to End of Terminal Length).

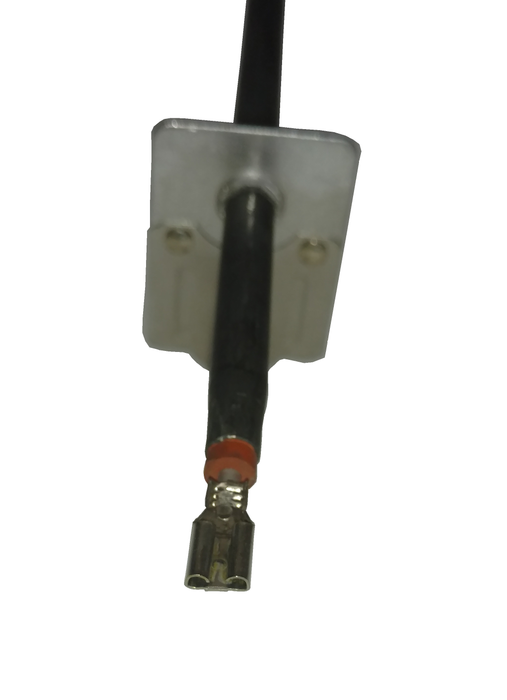

  • Female Quick-Connect Push-In (Spade) Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears / KenmoreIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
  • HINT: Use CTRL+F to use the search function for your model number.
  • Fits Whirlpool-Maytag Model Numbers: 9875VRV , 9875VVV , 9875VYV , 9875XRB , 9875XVB , 9875XYB , 9876VVV , 9876XVB , 9895VRV , 9895XRB , A9875VRV , A9875XRB , A9895VRV , A9895XRB , C9875VRV , C9875VVV , C9875XRB , C9875XVB , CWE9000BCB , CWE9000BCE , CWE9000BCM , CWE9000BDB , CWE9000BDE , CWE9000CDB , CWE9000CDE , CWE9000DDB , CWE9000DDE , CWE9030BCB , CWE9030BCE , CWE9030BDB , CWE9030BDE , CWE9030DDB , CWE9030DDE , CX9875VVV , CX9875VYV , CX9875XYB , L9875VRV , L9875VVV , L9875XRB , L9875XVB , RB262PXAB0 , RB262PXAB1 , RB262PXAB2 , RB262PXAB3 , RB262PXAB4 , RB262PXAB5 , RB262PXAB6 , RB262PXAQ0 , RB262PXAQ2 , RB262PXAQ3 , RB262PXAQ4 , RB262PXAQ5 , RB262PXAQ6 , RB262PXAW0 , W131B , W131B-C , W131W , W131W-C , W132B , W132W , WME3020B , WME3020W , X9875VVV , X9875XVB



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any of their affiliates.
