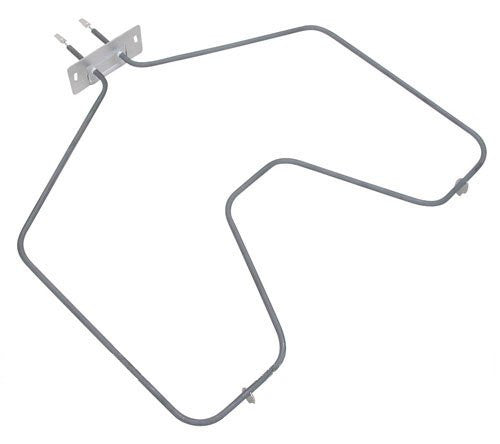

Model TC-44X10009: GE WB44X10009 Range/Oven Bake Replacement Element, 1,940/2,585 W @ 208/240 V

Save 15% Save 15%
Original price $ 91.50
Original price $ 91.50 - Original price $ 91.50
Original price $ 91.50
Current price $ 77.78
$ 77.78 - $ 77.78
Current price $ 77.78
5 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3015-003      Therm Coil Model No.: TC-44X10009


HELPFUL HINT: Use CTRL+F to use the search function for your element part number.
  • Replacement For Part Numbers:

G.E.: WB44X10009

Other: AP2031061, 260864, AH249344, EA249344, PS249344, TJWB44X10009, AP5306676, CH44X10009, ERB44X10009.

  • 1940/2585 W @ 208/240V Rating

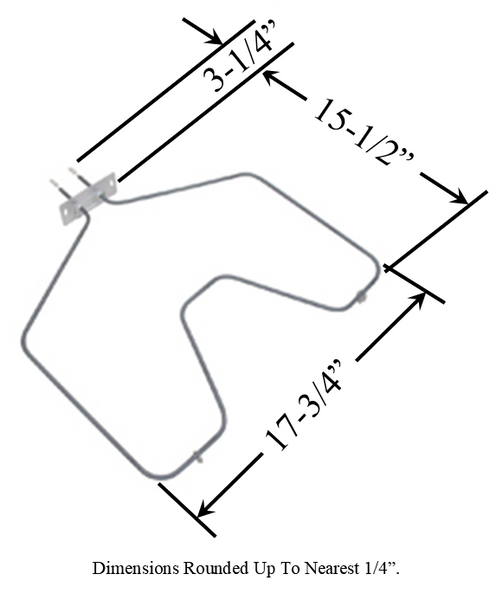

  • Approximate Overall Size: 17-3/4" Wide x 15-1/2" Length From Back Of Element To Mounting Brackets x 1-17/32" Center-to-Center Terminal Width x 3-1/8" Insert From Bracket to End of Terminals.
  • Male Quick-Connect Push-In Terminals (If you need  #8-32 Threaded Screw-In Terminals, choose element Model TC-44X5082.)
  • Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not All compatible range/oven models are listed.  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.

HELPFUL HINT: Use CTRL+F to use the search function for your appliance model number.

  • Fits GE Oven/Range Model Numbers:

RB757BB1, RB787WB1WW, JBP21BB1, JBS27WY3, JBS03V5, JBS27BY3, JBP21BY4, RB525V4, RB787BB1BB, RB757WB1, RB525GV5, JBP24BY2, JBS27BY2, JBP24BY4, JBP21WB1, JBP61DB1WH, JBS07V6, JBP21BY2, JBP61WB1WW, JBP19BB1, RB753BB1, JBS03GV6, RB526WW4, JBS03V4, JBS27WY2, JBP63BB1AD, JBP63BB1WH, JBS26W4, RB797WB1WW, JBC27BY2, JBP22DA1, JBP61DA2WH, JBP63BY4WH, RB526V5, RB797BB1BB, JBP21BY3, JBP24BY3, JBP24DY4, JBP61WB2WW, JBS26W5, RB525GV4, RB530WB1, JBP21WA1, JBP60BB1WH, JBP63BY5WH, RB585BB1WH, RB585WB1WW, JBC27BY3, JBP24DY2, JBP24DY3, JBP63BY2WH, JBS02BB1, JBS23BB1, JBS27AY3, JBS61WB1WW, RB526WW3, RB533GW4, RB533GW5, RB536GW5, RB797AB1AA, JBP19BY2, JBP19BY3, JBP19BY4, JBP60BY2WH, JBP60BY3WH, JBP60BY4WH, JBP60BY5WH, JBP61DA1WH, JBP63BY2AD, JBP63BY3AD, JBP63BY3WH, JBP63BY4AD, JBP63BY5AD, JBS03GV5, JBS07PIY2, JBS07PIY3, JBS07V5, JBS27AY2, JBS61BB1AD, JBS61BB1WH, MB536BB1, MB757WB1, RB525V3, RB526V4, RB536GW4, RB585BB1AD, RB632GW3, RB632GW4


    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
