Model KT-110-SP: TPI KT110 Rugged SPST Heat Only Hard-Wire Bi-Metal Thermostat, -10°F to 100°F, 22 Amps @ 125-250 VAC Res. Special "Colder-Warmer" Dial Markings

Therm Coil Drawing No.: 337T-3001-005-SP

Therm Coil Model No: KT-110-SP

TPI Model No.: KT110 (Old Style)

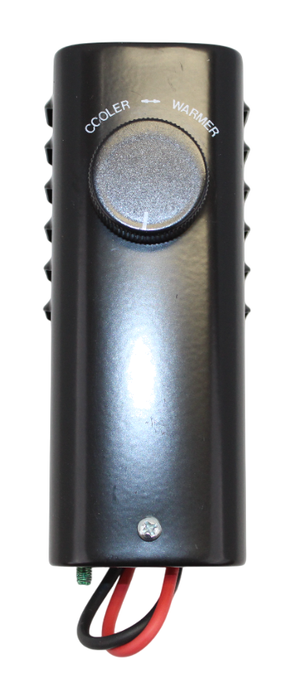

ATTENTION:  This Model KT-110-SP has dial markings of "COLDER - WARMER" (see product photo) and no degrees indicated and is clearance priced.  If you need the dial with degree markings, please see our Model KT-110 (Drawing No. 337T-3001-005).

Features

• -10°F to 100°F Temperature Range
• Special Dial Markings: COLDER - WARMER (SEE PRODUCT PHOTO)
• For Heat Only Applications
• Bi-Metal Temperature Sensor
• SPST Switch Action
• 6" Lead Wires For Hard-Wired Installation
• Rugged Steel Case

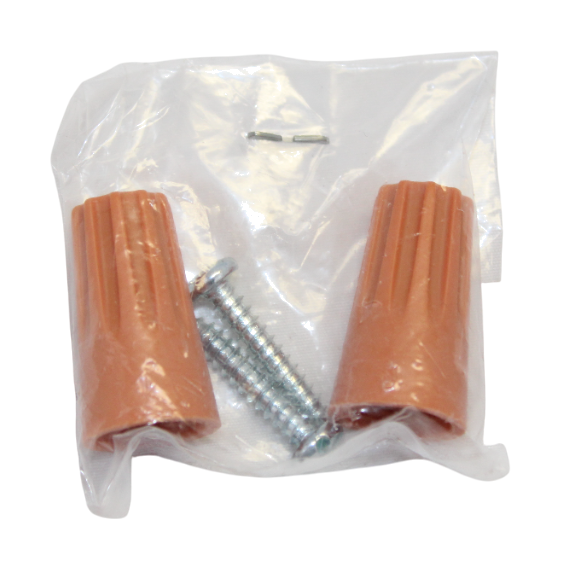

• Includes Hardware: (2x) Wire Nuts, (2x) Mounting Screws

Specifications

• Range: -10°F - 100°F Heat Only (-23°C - 212°C)

• Rating: 22 Amps @ 125-250 VAC Res.
               3/4 HP @ 125 VAC
               1-1/2 HP @ 250/277 VAC
               82.8 LRA @ 125 VAC
               60 LRA @ 240 VAC
               13.8 LRA @125 VAC
               19 FLA @ 250 VAC

• Switch: SPST

• Temperature Sensor: Bi-Metal
• Connections: 6-Inch Lead Wires
• Scale: Celsius or Fahrenheit

• Differential: ±6-8°F
• Control: Analog

• Dimensions: 5.5" H x 2.13" W x 2.63" Deep From Back of Case to Front of Knob
• Application: Commercial and Industrial Applications

• Approvals: U.L. Approved & C.S.A. Certified; RoHS2 Compliant

Equivalent to Part Numbers:

TPI / Columbus: KT110 (old style)
