Model KT-110: TPI KT110 Rugged SPST Heat Only Hard-Wire Bi-Metal Thermostat, -10°F to 100°F, 22 Amps @ 125-250 VAC Res.

Therm Coil Drawing No.: 337T-3001-005

Therm Coil Model No: KT-110

TPI Model No.: KT110

ATTENTION: This model KT-110 has dial markings of alternating Celsius and Fahrenheit degrees.  We also have a clearance version WITH special clearance pricing of this model which has different dial markings of "COLDER-WARMER" under Model KT-110-SP (Drawing No. 337T-3001-005-SP).

Features

• -10°F to 100°F Temperature Range

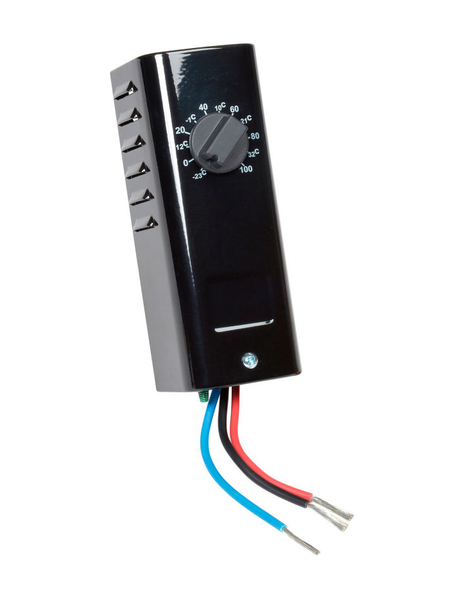

• Alternating Celsius and Fahrenheit Dial Markings: -23°C to 100°F (See Product Photo)
• For Heat Only Applications
• Bi-Metal Temperature Sensor
• SPST Switch Action
• 6" Lead Wires For Hard-Wired Installation

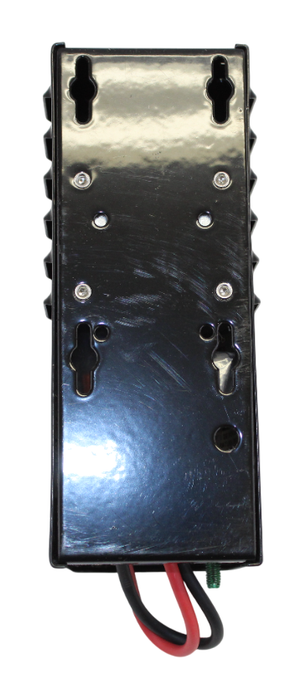

• Rugged Steel Case

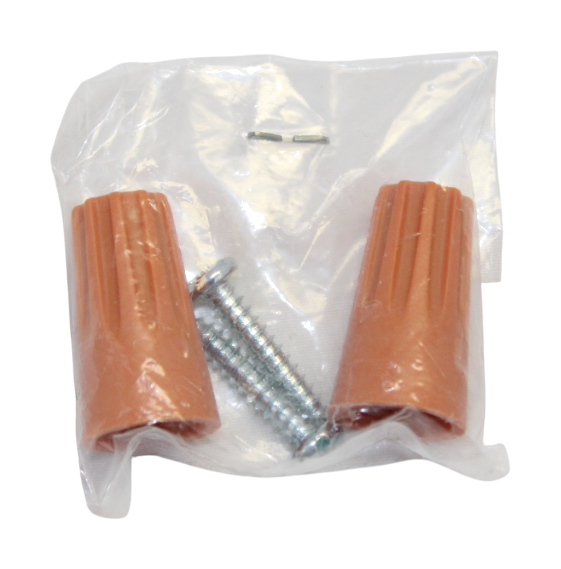

• Includes Hardware: (2x) Wire Nuts, (2x) Mounting Screws

Specifications

• Range: -10°F - 100°F Heat Only (-23°C - 212°C)

• Rating: 22 Amps @ 125-250 VAC Res.
               3/4 HP @ 125 VAC
               1-1/2 HP @ 250/277 VAC
               82.8 LRA @ 125 VAC
               60 LRA @ 240 VAC
               13.8 LRA @125 VAC
               19 FLA @ 250 VAC

• Switch: SPST

• Temperature Sensor: Bi-Metal
• Connections: 6-Inch Lead Wires
• Scale: Celsius or Fahrenheit

• Differential: ±6-8°F
• Control: Analog

• Dimensions: 5.5" H x 2.13" W x 2.63" Deep From Back of Case to Front of Knob
• Application: Commercial and Industrial Applications

• Approvals: U.L. Approved & C.S.A. Certified; RoHS2 Compliant

Equivalent to Part Numbers:

TPI / Columbus: KT110

Disclaimers: TPI and Columbus Electric are registered trademarks of TPI Corporation. Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
