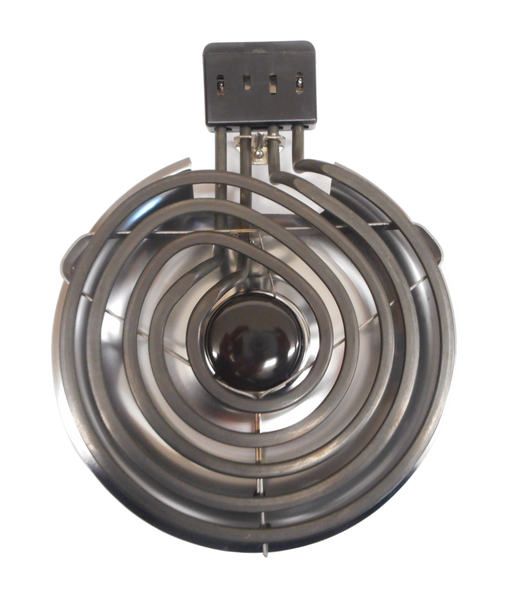

Model MC80MD: Replacement 8" (7.5" O.D.) Surface Element With Terminal Block For Ranges/Ovens, 2,100W / 1,575W @ 240V / 208V

Therm Coil Drawing No.: 370D-1020-002     Therm Coil Model No.: MC80MD

Description

• 8" Surface Element Replacement (7-1/2" Outer DIA. Element)

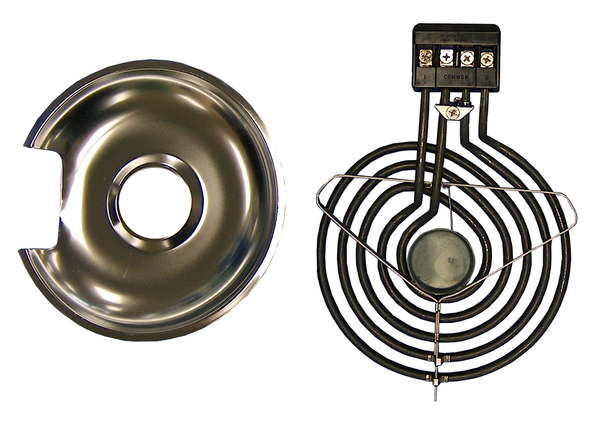

• Includes: Pan Only
• Rating: 2100 W @ 240 V or 1575 W @ 208 V
• Bracket Style:  Heavy-Duty D Style (Delta)
• Terminals: (4x) Screw-In 10-32 Lug Terminals and Includes a Terminal Block With Screws
• NOTE: This unit does have a Pan, but does not come with a ring - if you need the ring, please order Model MC80-R9R (Drawing No. 370D-1020-003).
• Used In Various Ranges and Stoves With Screw-In Terminal Style Burners.

Replacement For Part Numbers:

• Whirlpool / Emerson / Supco / Chromalox: MC80MD, 400063, 404013, MC80, MC80MD, 230-023910-512, 023910-512, 230-023910-521, 023910-521
• Other: TJMC80MD, AP5642220, AP3087484, 195414, YMC80MD

Therm Coil MFG. Co. is not affiliated with House of Webster, Whirlpool Corporation, Sears, or any listed manufacturers of their affiliates.
