Model TC-1011: Philco / Frigidaire 3204-33 Equivalent Range/Oven Bake Replacement Element, 2,500W @ 240V

Save 15% Save 15%
Original price $ 102.00
Original price $ 102.00 - Original price $ 102.00
Original price $ 102.00
Current price $ 86.70
$ 86.70 - $ 86.70
Current price $ 86.70
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4278-003      Therm Coil Model No.: TC-1011

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire / Philco: 3204-33

Chambers / Preway / Kenmore / Whirlpool: K16337

Other: CH1011, 202-871872-001, 871872-001, 450861, AP3297924, 508338, AP4673258, AP4502537, TJ90CH1011, CH743, RP743, TS1011, TS1011/743, TS743, TS743/1011, YCH1011

NOTE: Your part number may cross-reference to both our TC-1011 (366R-4278-003) and our TC-4892 (366R-4049-003) because there is manufacturer OEM cross-over for these units.  Please compare your old element's terminal position (straight or pointed inward) and the element's dimensions to our two replacement options to ensure that you get the correct replacement.

  • Rated: 2500 W @ 240 V

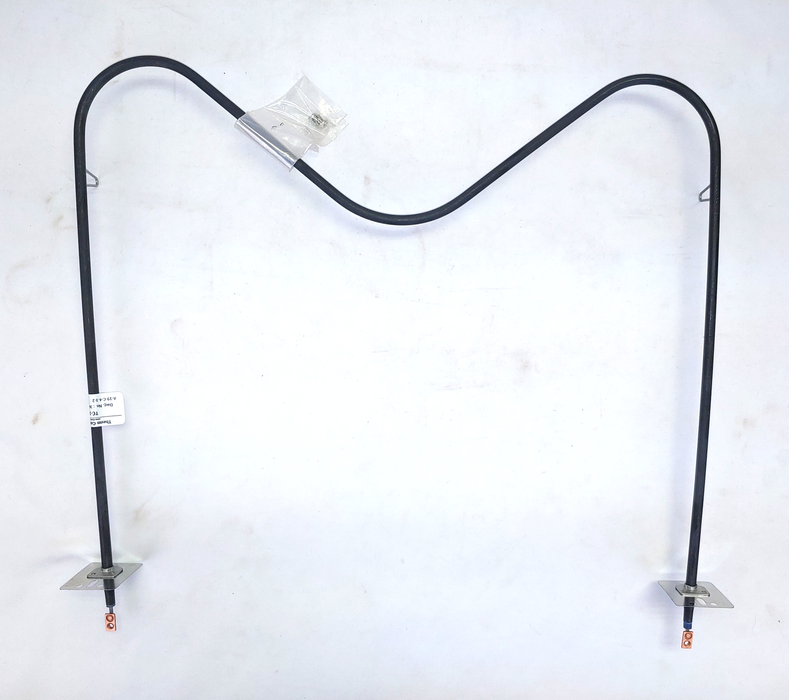

  • Approximate Overall Size: 19-1/4" Wide x 15-13/16" Length From Back Of Element To Mounting Bracket x 1-15/16" Insert From Bracket To Terminal Ends (2" MAX.).

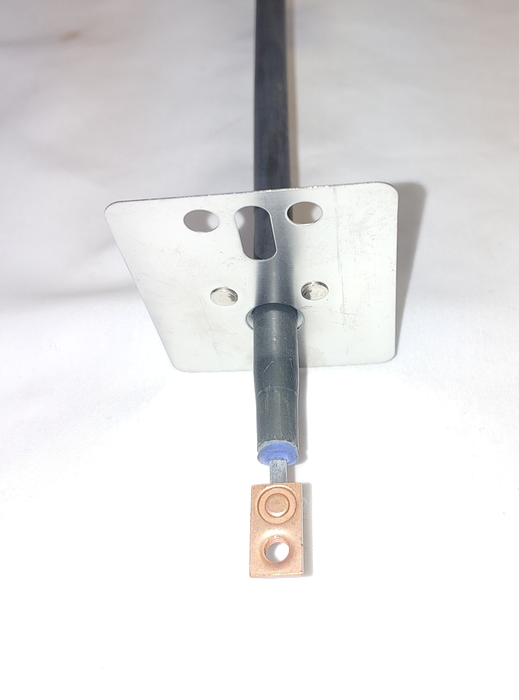

  • Screw-In Threaded Terminals (Straight)
  • Used in various models of Tappan, Whirlpool, Frigidaire, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Electrolux Home Products, Inc., Sears, or any other listed manufacturers or their affiliates.
