Model TC-44X139: GE WB44X139 Equivalent Range/Oven Broil Replacement Element, 3,100W @ 240V

Save 15% Save 15%
Original price $ 82.00
Original price $ 82.00 - Original price $ 82.00
Original price $ 82.00
Current price $ 69.70
$ 69.70 - $ 69.70
Current price $ 69.70
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3089-003A      Therm Coil Model No.: TC-44X139


HELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
  • Replacement For Part Numbers:

G.E.: WB44X139, WB44X0138, WB44X0139, WB44X138

Other: AP2031012, 260906, 340635, AH249392, EA249392, PS249392, TS44X139.

  • 3100W  @ 240V Rating

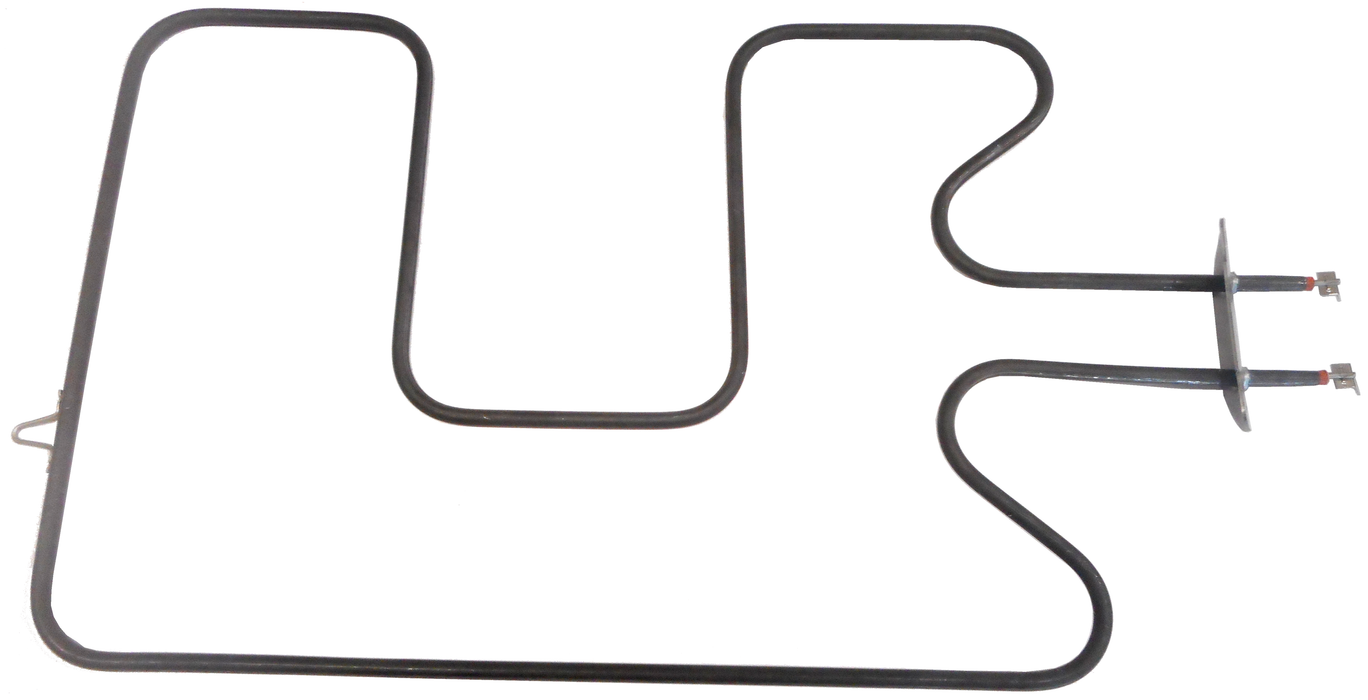

  • Approximate Overall Size: 10-3/4" Width x 17-27/32" Back Of Element To Mounting Bracket x 1-1/4" Center-to-Center Terminal Width x 3-1/8" (3.203" MAX.) Insert Bracket To Terminal End.

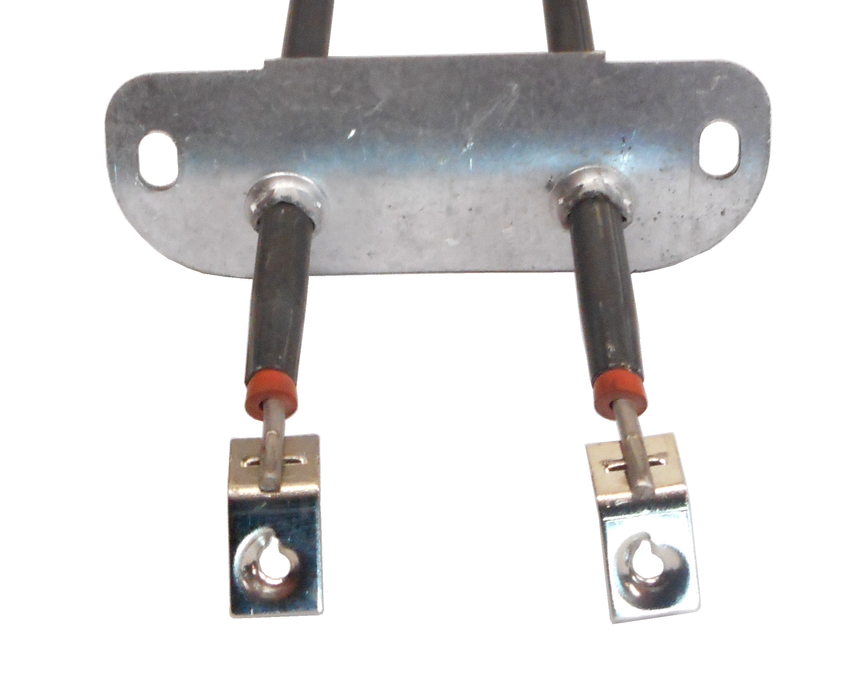

  • #8-18 Threaded Screw-In Terminals, Angled Downward (Helix Connectors)

(NOTE: If You Need This Element With 1/4" Male Quick-Connect Push-In Connectors, Use Element Model TC-44X5015)

  • Used in various models of General Electric (GE), Hotpoint, RCA, Kenmore/Sears, JC Penny, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your model number.
    • Used In G.E. and Kenmore/Sears Oven/Range Model Numbers:

    JHP63GN2, JHP56GN1, JHP56GN2, 107RHV786J, 3639858810, 3639858911, 3639868810, J765x01, J765x03, J792xL1, JHC56GxD1, JHC56GxD2, JHC56xD1, JHC56xVA, JHC56xVB, JHP56G*H1, JHP56GxC1, JHP56GxD1, JHP56GxD2, JHP56GxD3, JHP56GxH2, JHP56GxJ1, JHP56GxJ2, JHP56GxJ3, JHP56GxM1, JHP56GxV6, JHP56NxK1, JHP56NxK2, JHP56NxK3, JHP56NxK4, JHP56VxK1, JHP56VxK2, JHP56VxK3, JHP56VxK4, JHP56xD1, JHP56xV8, JHP56xVA, JHP63GN1, JHP63GxH1, JHP63GxJ1, JHP63GxJ2, JHP63GxJ3, JHP63GxM1, JHP63VxK1, JHP63VxK2, JHP63VxK3, JHP63VxK4, JHP63VxK5, JHP67G*H1, JHP67GxD1, JHP67GxD2, JHP67GxD3, JHP67GxH2, JHP67GxV5, RH758GxD1, RH758GxD2, RH758GxD3, RH758GxH1, RH758GxH2, RH758GxJ1, RH758GxJ2, RH758GxJ3, RH758GxM1, RH758VxK1, RH758VxK2, RH758VxK3, RH758VxK4, RH758xV8, RH758xV9


     Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
