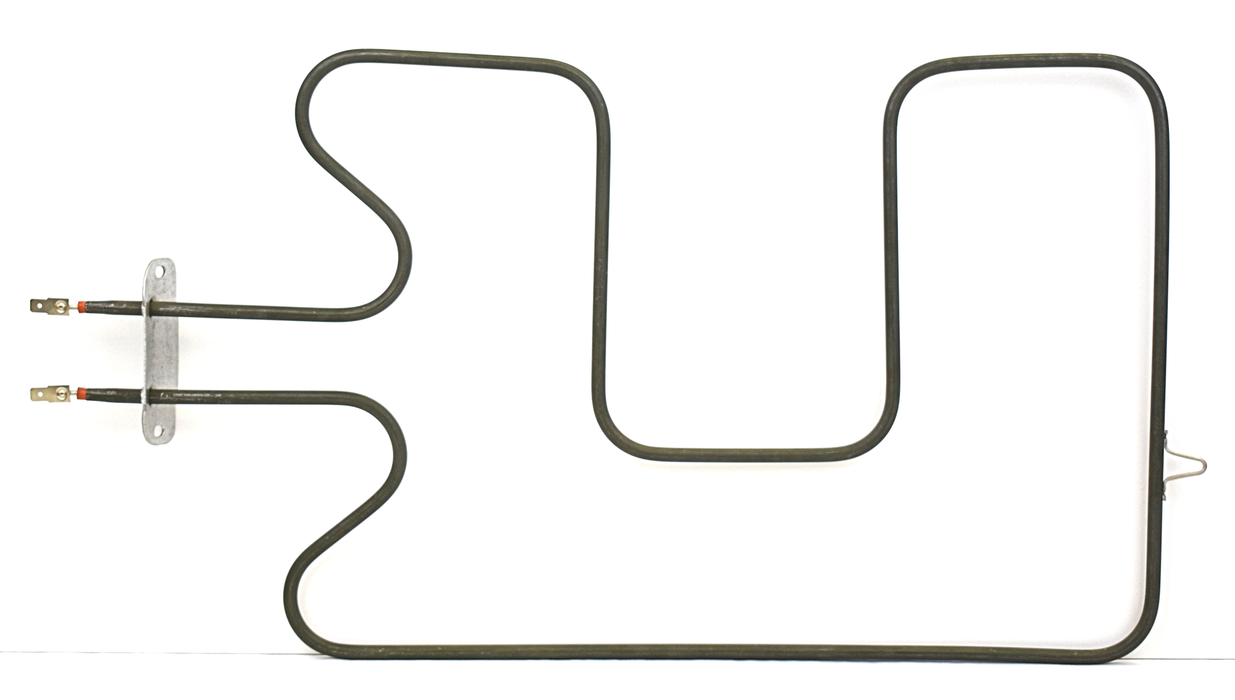

Therm Coil Drawing No.: 366R-3089-003B Therm Coil Model No.: TC-44X5015
HELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
Replacement For Part Numbers:
- 3100W @ 240V Rating

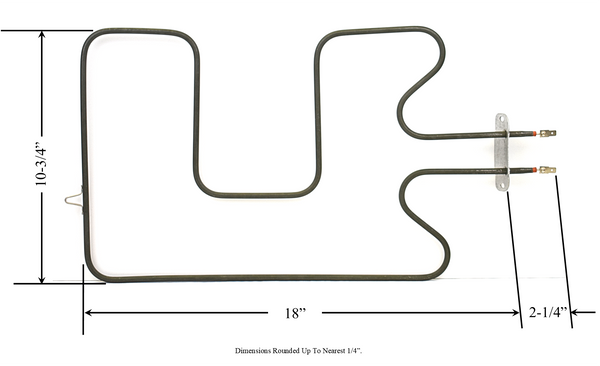

- Approximate Overall Size: 10-3/4" Width x 17-27/32" Back Of Element To Mounting Bracket x 1-1/4" Center-to-Center Terminal Width x 2-1/8" (3.203" MAX.) Insert Bracket To Terminal End.

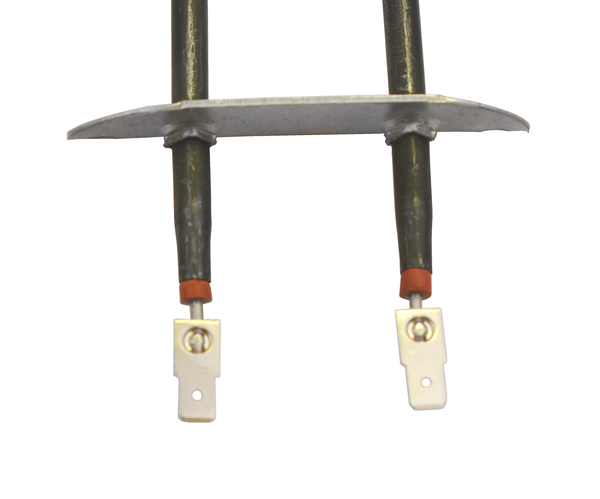

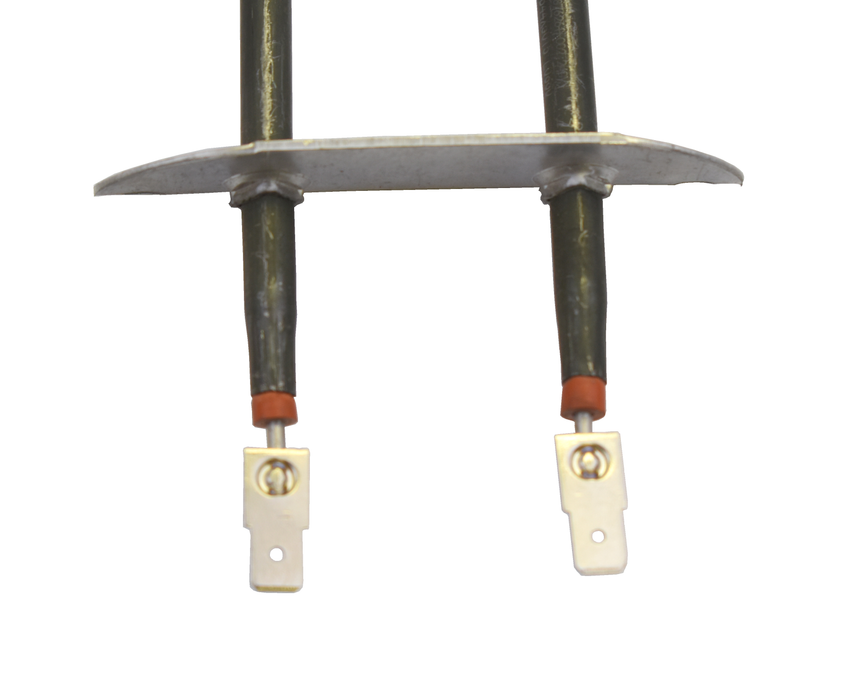

1/4" Male Quick-Connect Push-In Terminals
(NOTE: If You Need This Element With #8-18 Threaded Screw-In Terminals [Angled Downward], Use Element Model TC-44X139.)
- Used in various models of General Electric (GE), Hotpoint, RCA, Kenmore/Sears, JC Penny, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
